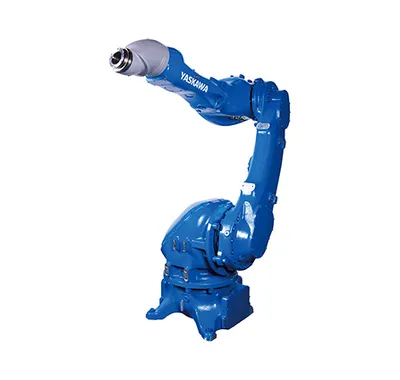

MPX2600
High-Speed Painting Robot
The MPX2600 is a high-speed, compact six-axis robot ideal for painting contoured parts such as interior/exterior surfaces.Its hollow wrist design has an inside diameter of 70 mm, making it well-suited for mounting spray equipment applicators.
Technical Details
| Controlled Axes | 6 |
| Payload | 15 kg |
| Max Working Range | 2000 mm |
| Repeatability | 0.2 mm |
| Weight | 485 kg |
| Power Supply | 3 KVA |
| S Axis | 120 º/sec |
| L Axis | 120 º/sec |
| U Axis | 120 º/sec |
| R Axis | 360 º/sec |
| B Axis | 360 º/sec |
| T Axis | 360 º/sec |
